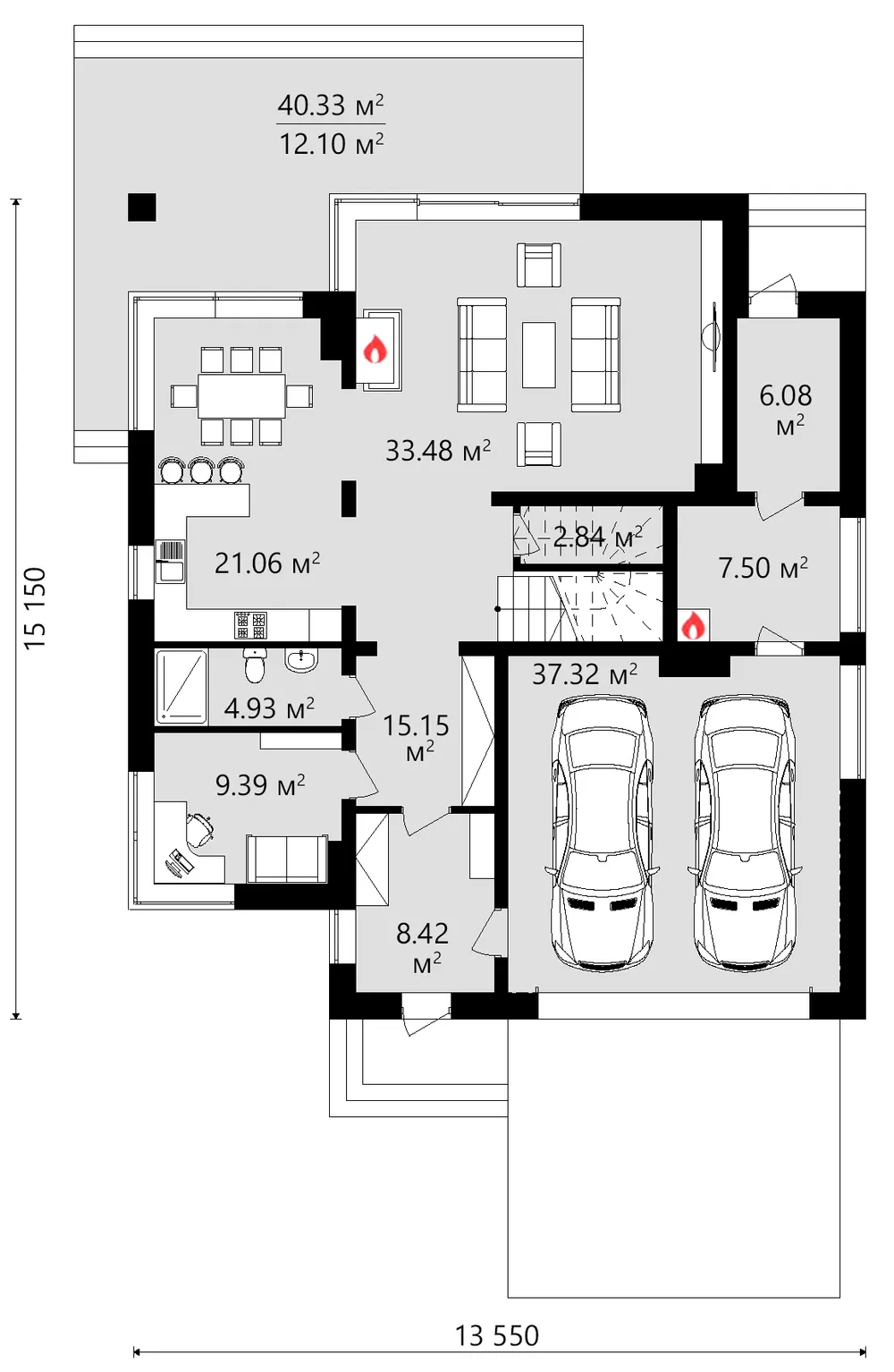

First floor plan

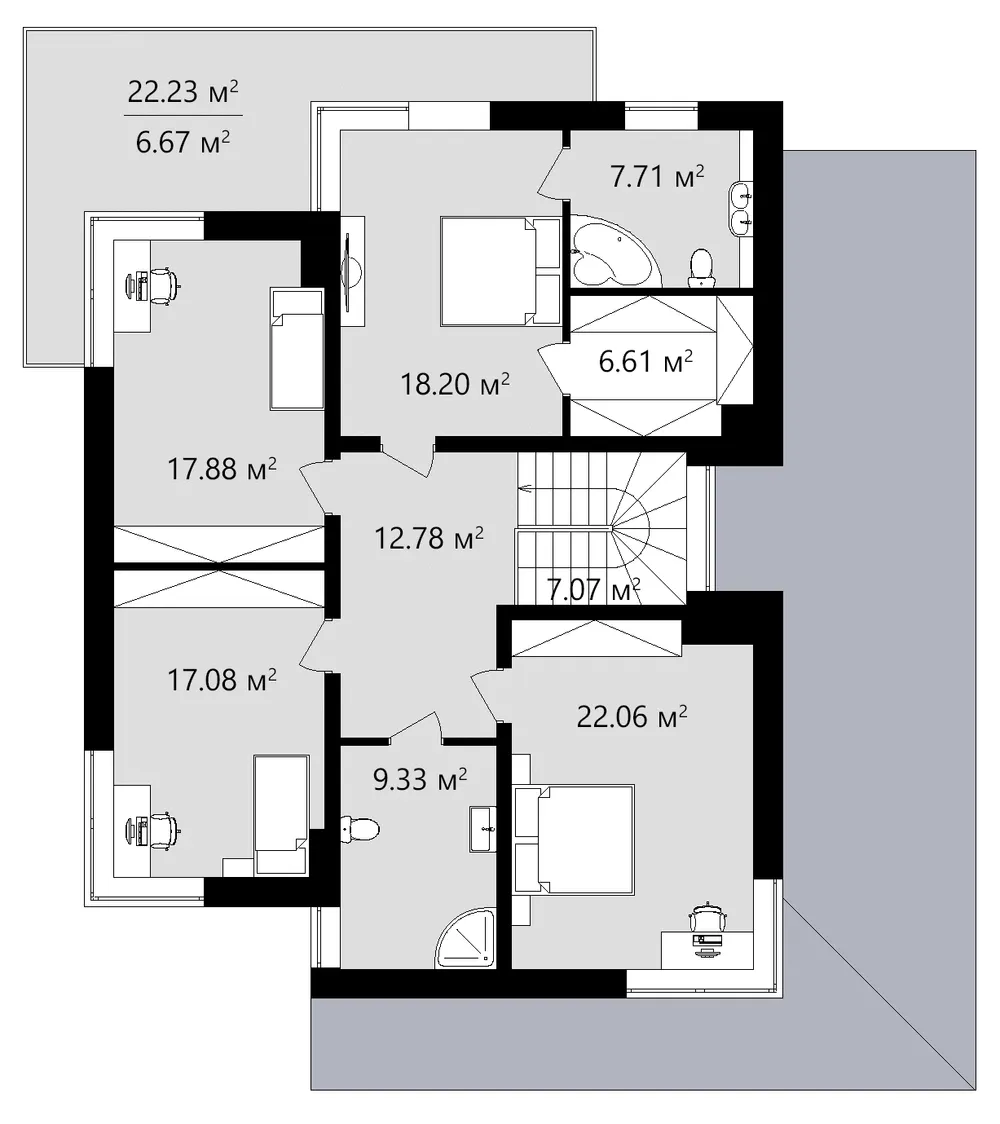

Second floor plan

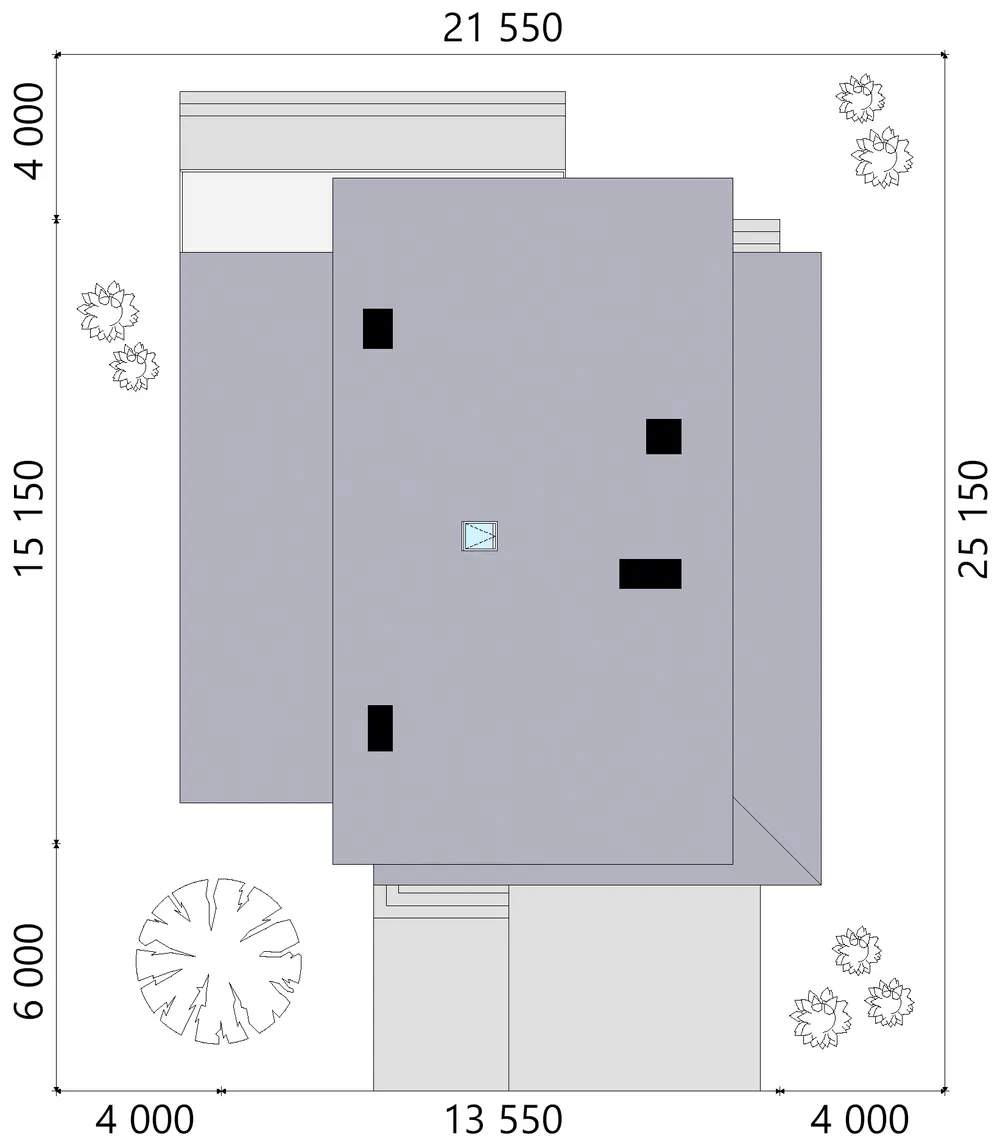

Roof plan

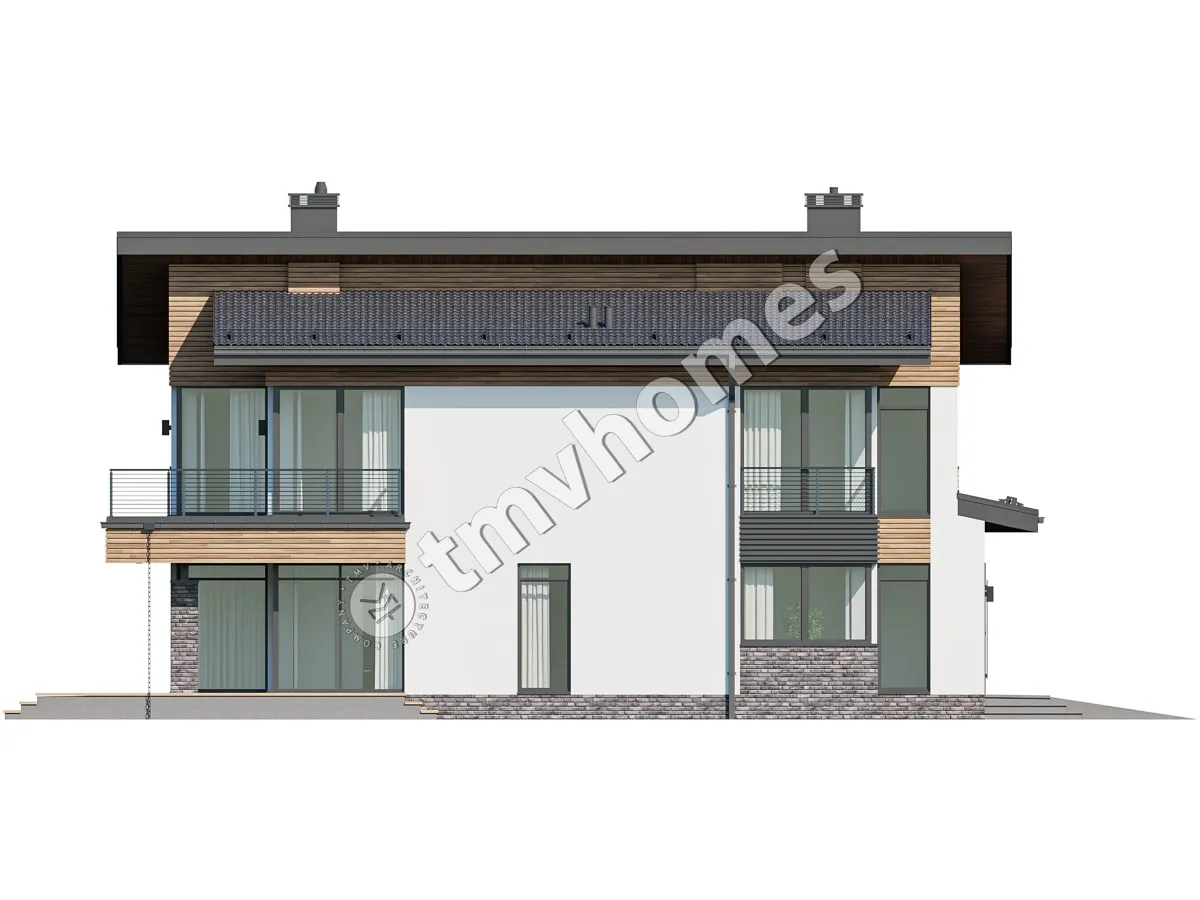

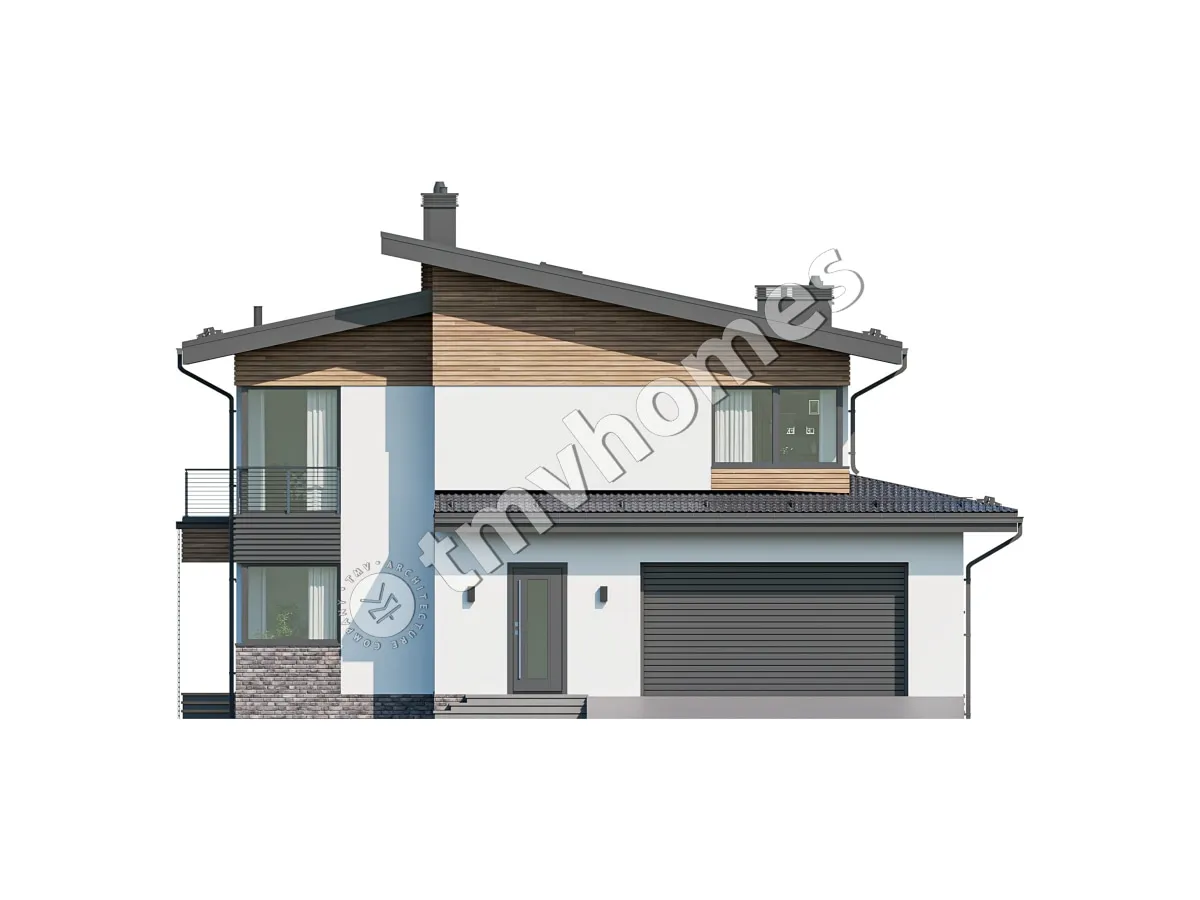

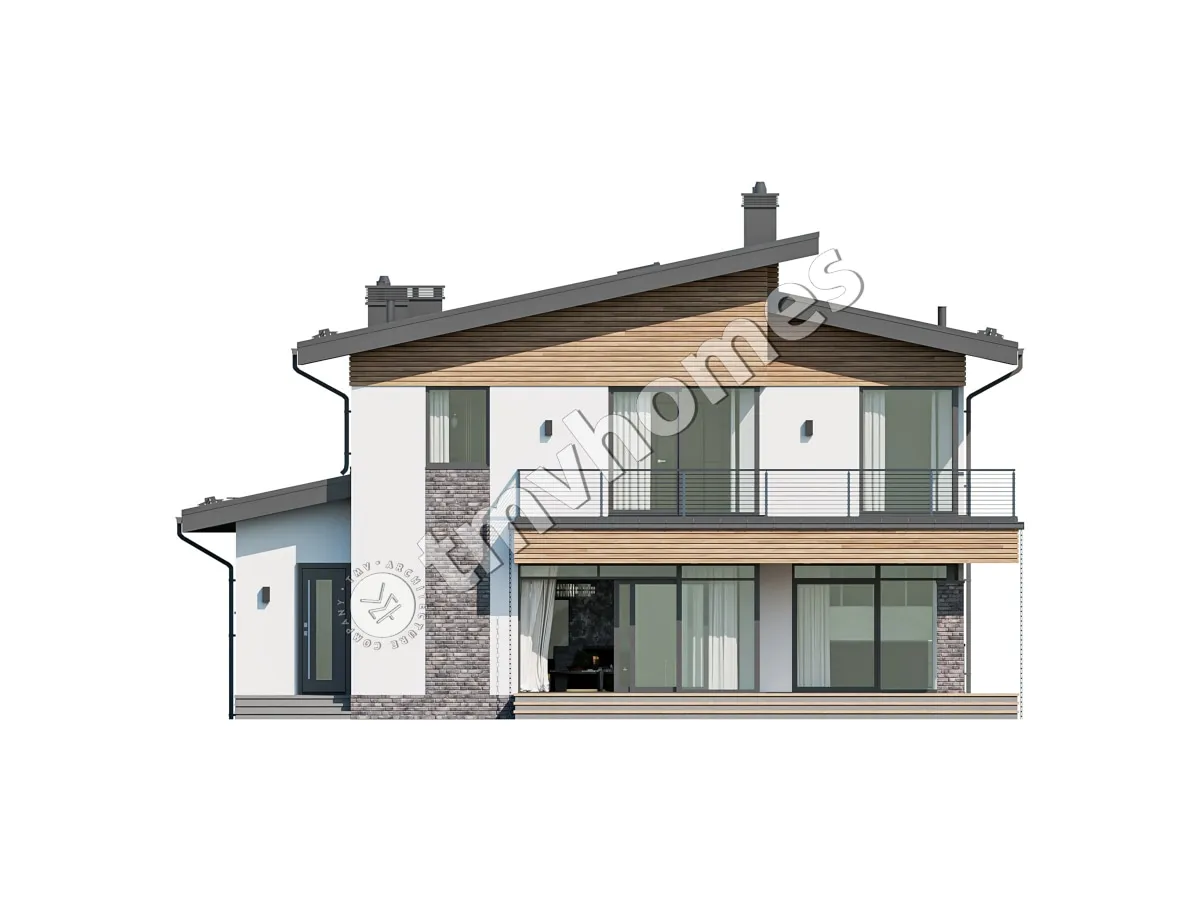

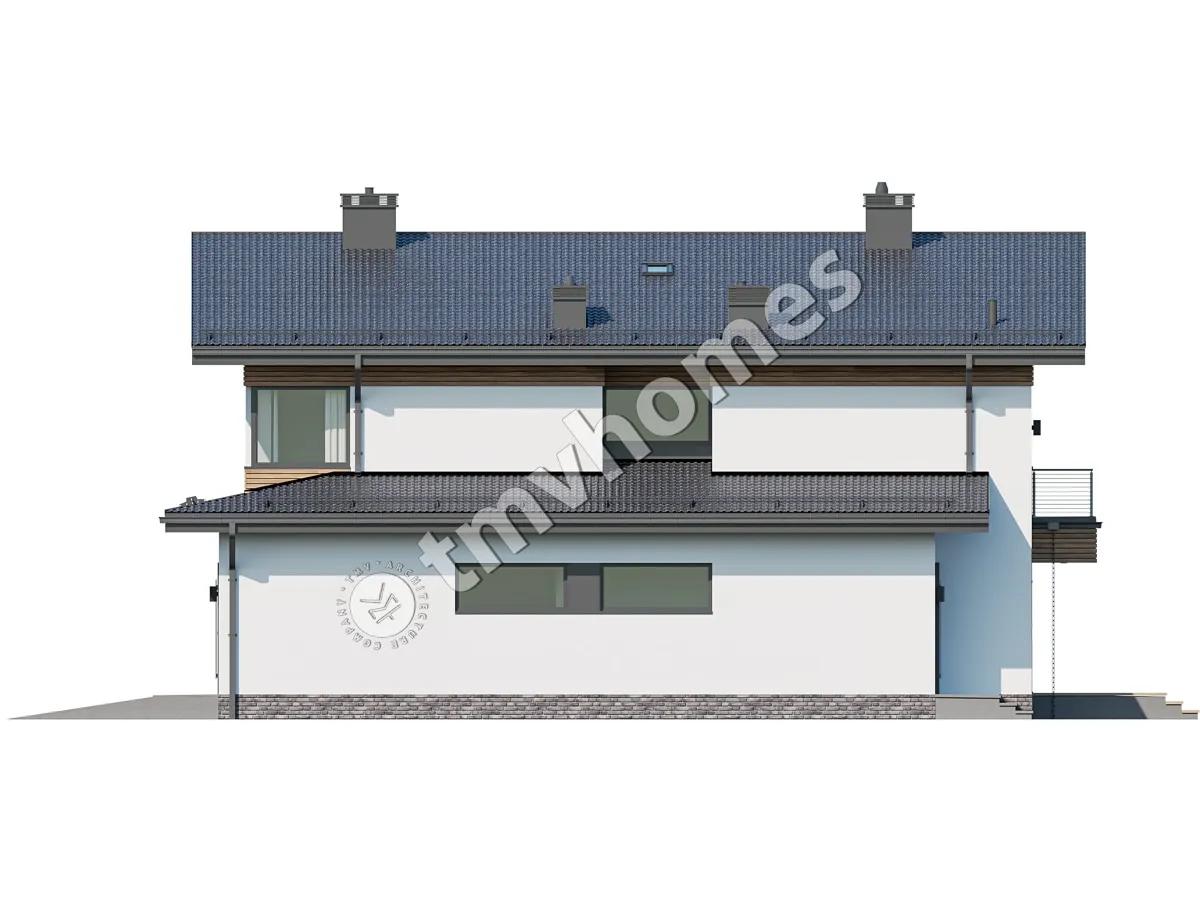

Facades
General characteristics
Total area 283.66 m2
1st floor area 158.27 m2
2nd floor area 125.39 m2
Living area 118.09 m2
Dimensions 13.55 x 15.15 m
1st floor height 3.00 m
2nd floor height 2.90 m
Building area 268.98 m2
Roof area 228.50 m2
Roof pitch 12 °
House height 9.02 m
Bedrooms 4
Bathrooms 3
Alteration are possible
Author's title TMV46A
Exterior walls
aerated concrete 375 mm + insulation 100 mm
Foundations
monolithic strip
Overlaps
reinforced concrete slab + prefabricated slabs
Roofing material
composite tile
