Project TMV 113E - a modern two-storey house with a convenient layout and a covered terrace. Composition of the premises: entrance hall, hall, kitchen-living room, 4 bedrooms, 3 bathrooms, dressing room, storage room, boiler room.
First floor plan
![](/_ipx/f_webp,w_1000/storage/uploads/2024/3/pPeGmnEEn6b0sKhMyL03gID6dTEfuU6uqZAiTK2A.png)
Second floor plan
![](/_ipx/f_webp,w_1000/storage/uploads/2024/3/66H76hjLiwGKbkNZDAz33uMokJnKyYf6KRXVorBh.png)
Roof plan
![](/_ipx/f_webp,w_1000/storage/uploads/2024/3/Jj8ClrhaH6wB28UzuayeIm5AjkfVJAlmxjbjL09s.png)

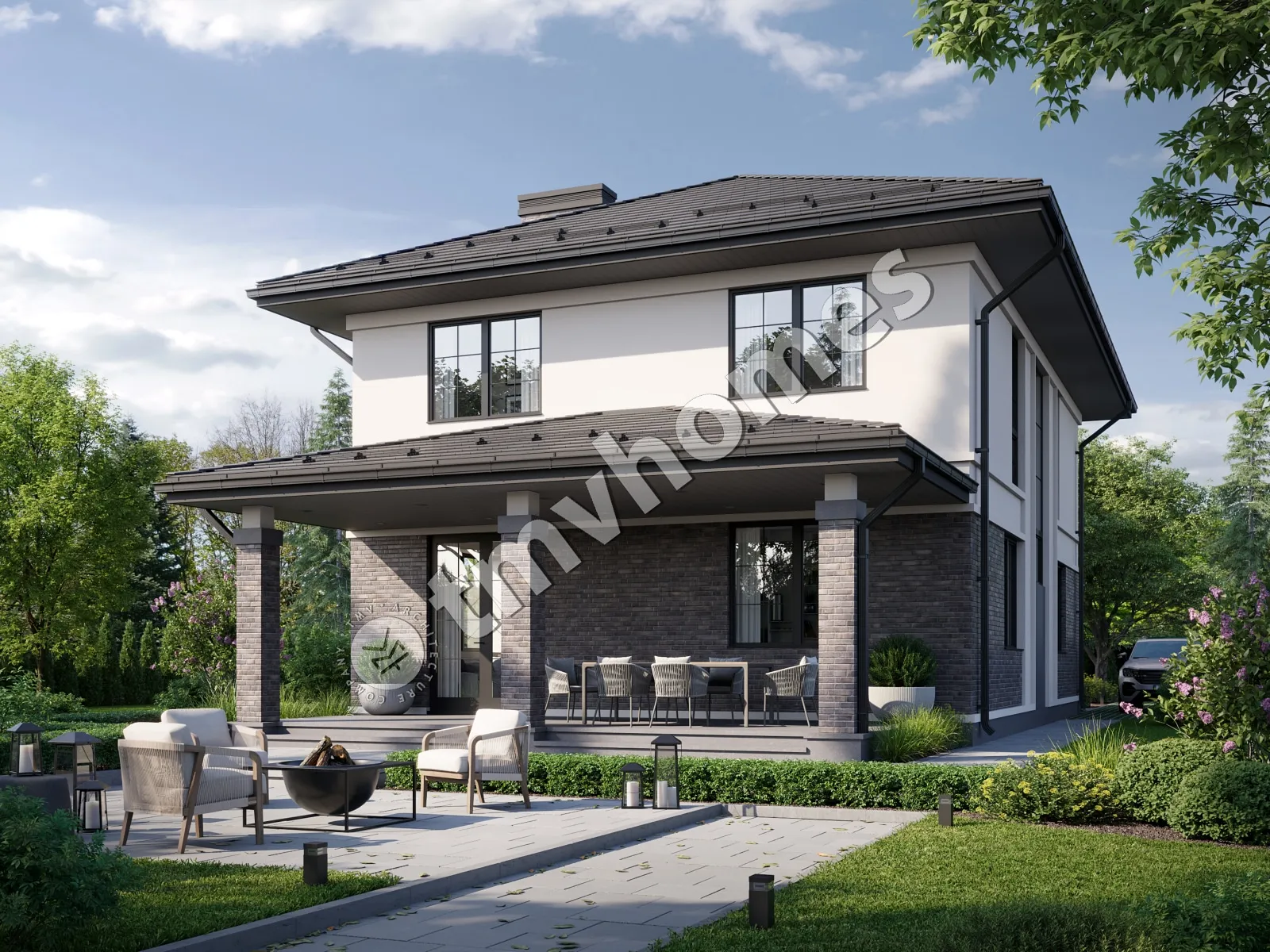

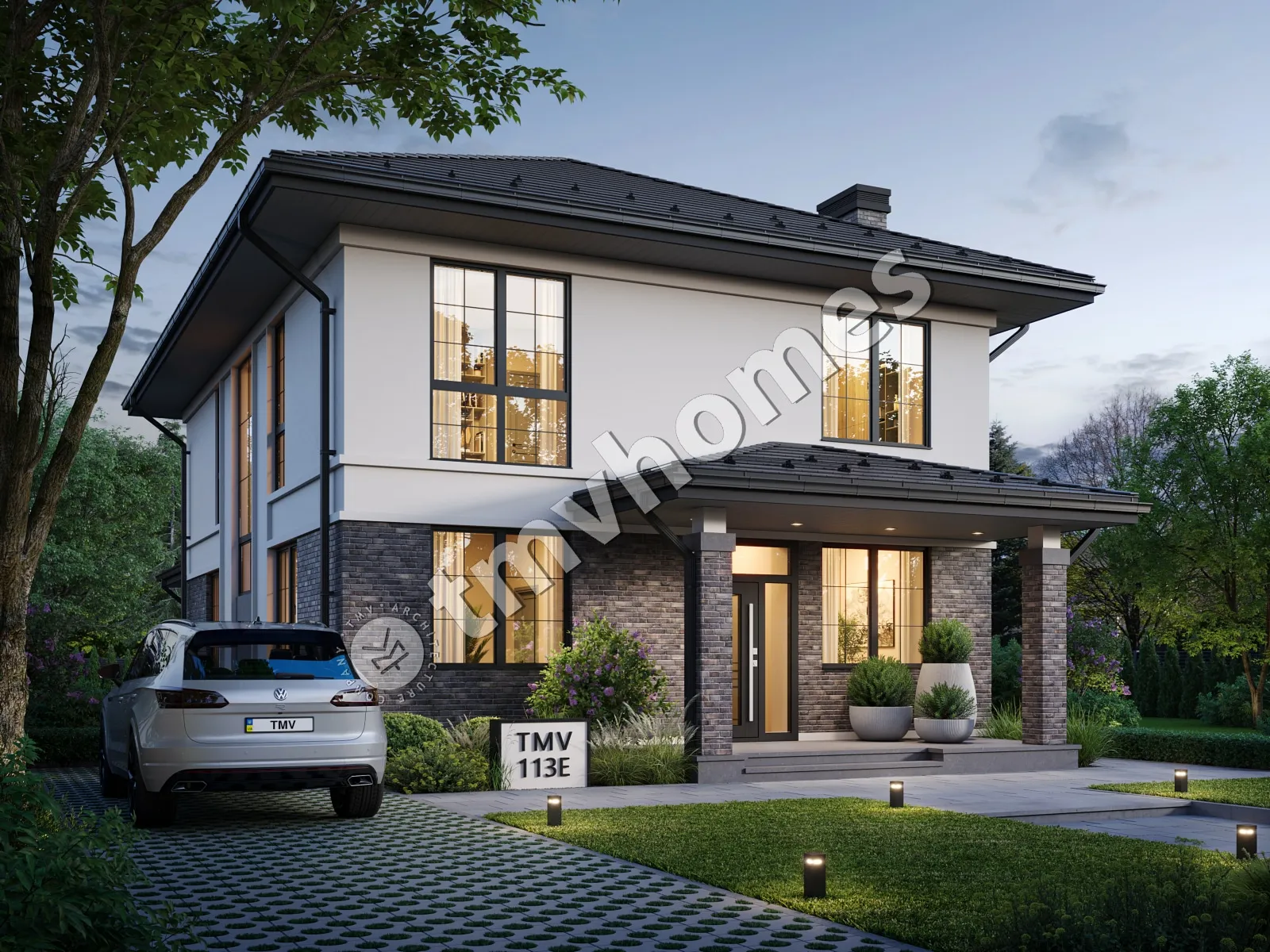

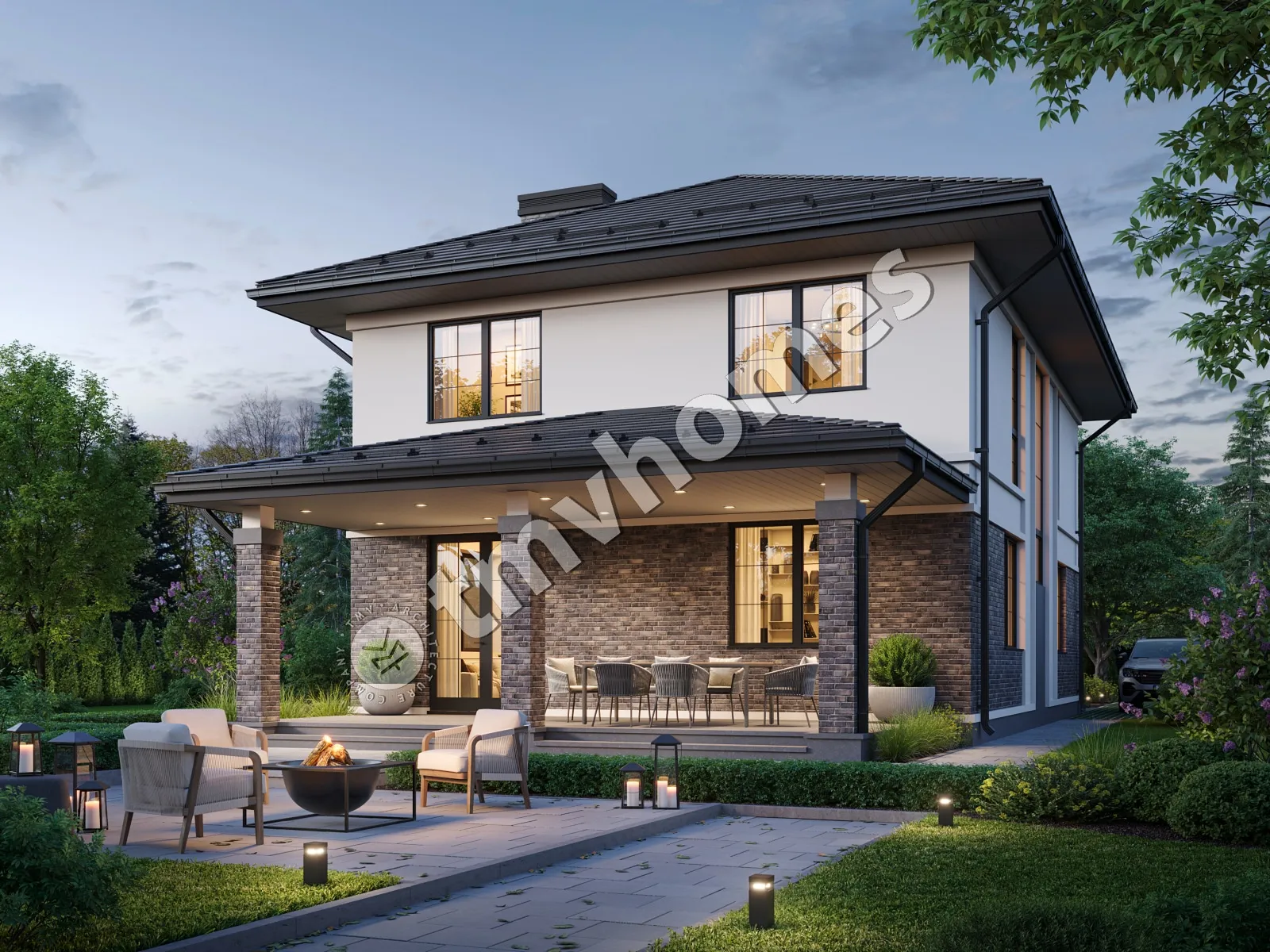

Facades
![](/_ipx/f_webp/storage/uploads/2024/4/w7mYYIfkk0beB41YGiHa4hx5PyxvZ9kbu7Z2pite.jpg)
![](/_ipx/f_webp/storage/uploads/2024/4/Lfex0lsIPjLRzrknWdZMlrfTCevKkq4gz4szkqmK.jpg)
![](/_ipx/f_webp/storage/uploads/2024/4/3MmuQBR8rtBtj4SOl37qEaCydmuLByttNms1kGVR.jpg)
![](/_ipx/f_webp/storage/uploads/2024/4/02avOHqu4kHwKdpcGNMYaNkSCaHJiE8Q20LaW4fC.jpg)
General characteristics
Total area 189.63 m2
Area without terraces 174.10 m2
1st floor area 96.63 m2
2nd floor area 93.00 m2
Living area 92.71 m2
Dimensions 9.26 x 18.68 m
1st floor height 3.00 m
2nd floor height 2.80 m
Building area 162.22 m2
Roof area 242.71 m2
Roof pitch 16 - 25 °
House height 9.24 m
Bedrooms 4
Bathrooms 3
Alteration are possible
Author's title TMV113E
Exterior walls
aerated concrete 400 mm + insulation 100 mm
Foundations
monolithic strip
Overlaps
prefabricated slabs + wooden beams
Roofing material
metal tile
