Project TMV 23F

Original

Mirrored

TMV 23F

278.93 m²

Project cost

69 500 UAH

Ask a question about the project

Project preparation time:
before 10 days

Construction Cost

~ 133 886$

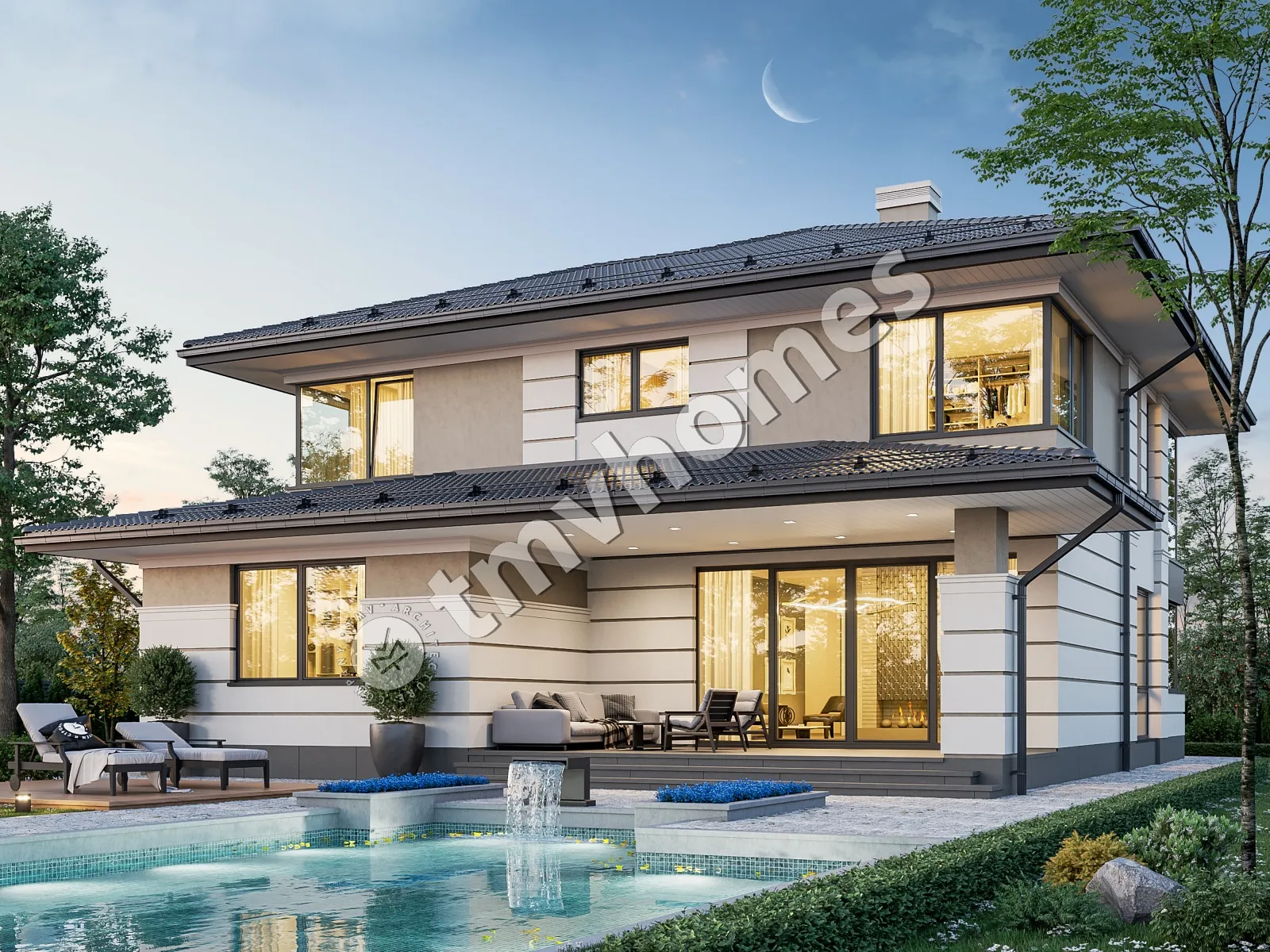

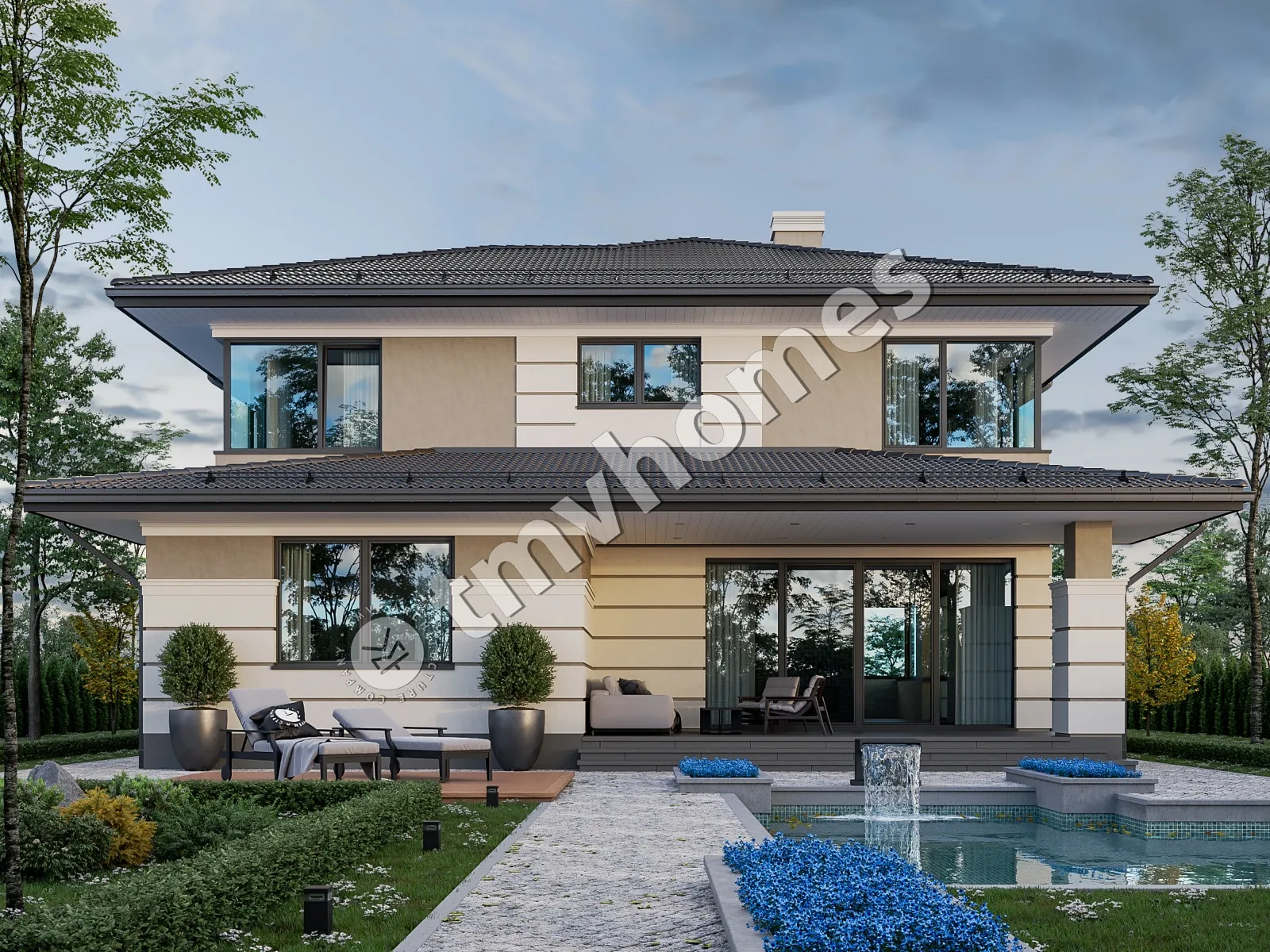

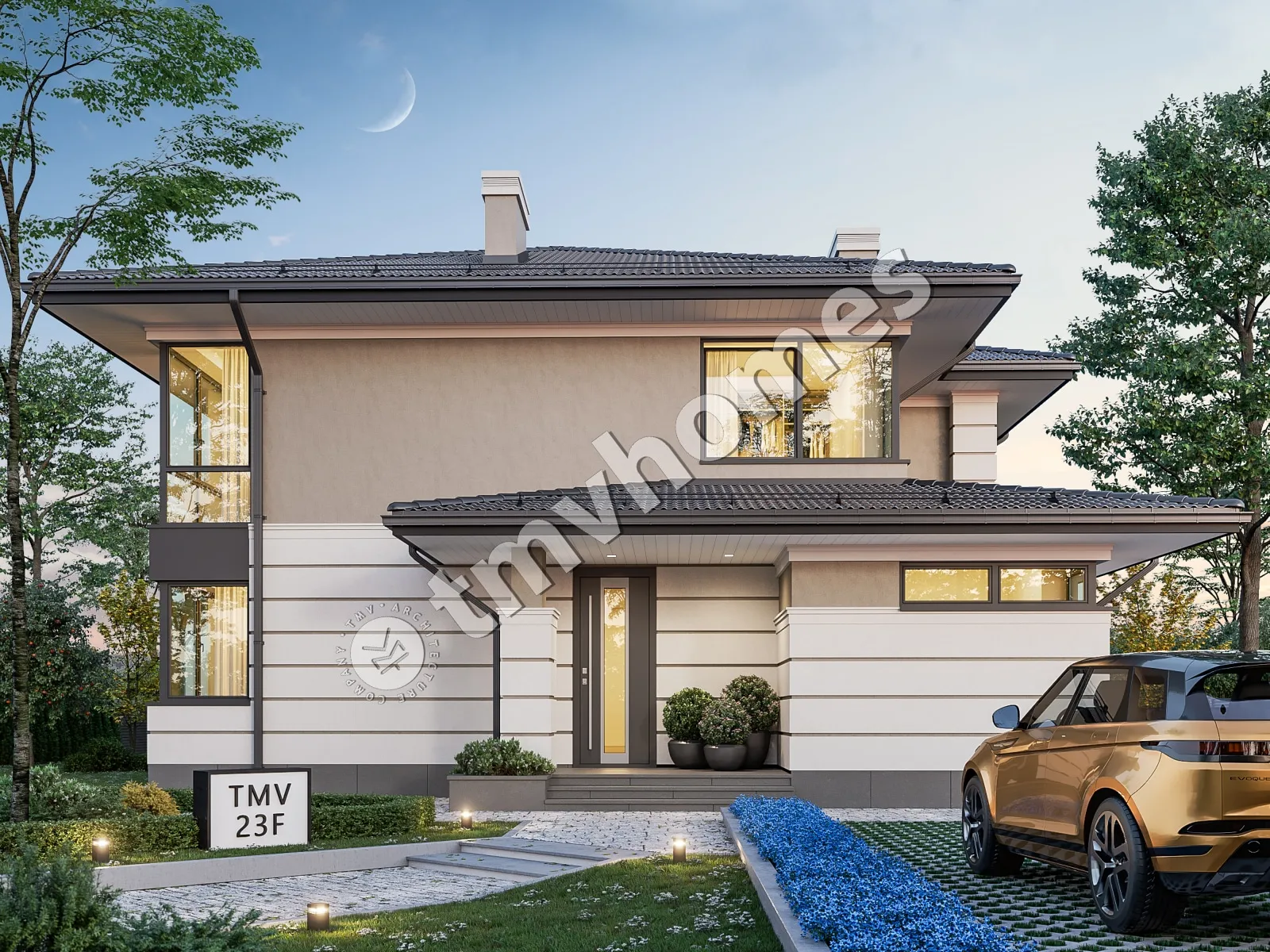

Project TMV 23F - a modern two-storey house in Wright style with a terrace. Composition of the premises: entrance hall, hall, living room, kitchen-dining room, cabinet, 4 bedrooms, 3 bathrooms, laundry room, dressing room, storage room, boiler room.

Mirror version of the project

First floor plan

Second floor plan

Roof plan

Facades

General characteristics

Total area 278.93 m²

1st floor area 157.12 m²

2nd floor area 121.81 m²

Living area 136.60 m²

Dimensions 13.41 x 18.19 m

1st floor height 3.20 m

2nd floor height 3.00 m

Building area 237.00 m²

Roof area 366.00 m²

Roof pitch 21 °

House height 9.80 m

Bedrooms 5

Bathrooms 3

Alteration are possible

Author's title TMV23F

Exterior walls

aerated concrete 400 mm + insulation 100 mm

Foundations

monolithic strip

Overlaps

reinforced concrete slab

Roofing material

metal tile

Construction
houses

TMV 23F

278.93 m²

House dimensions 13.41 x 18.19 m

Project cost 69 500 UAH

Build a house from 133 886 USD

TMV 23L

299.19 m²

House dimensions 16.53 x 15.89 m

Project cost 69 500 UAH

Build a house from 143 611 USD

TMV 23

256.40 m²

House dimensions 12.41 x 18.20 m

Project cost 62 500 UAH

Build a house from 123 072 USD

TMV 23A

243.30 m²

House dimensions 12.41 x 19.77 m

Project cost 62 500 UAH

Build a house from 116 784 USD

TMV 23B

255.60 m²

House dimensions 12.41 x 18.20 m

Project cost 62 500 UAH

Build a house from 122 688 USD

TMV 23C

298.40 m²

House dimensions 12.21 x 23.17 m

Project cost 69 500 UAH

Build a house from 143 232 USD

TMV 23D

256.40 m²

House dimensions 12.41 x 18.20 m

Project cost 62 500 UAH

Build a house from 123 072 USD

TMV 23E

281.00 m²

House dimensions 13.41 x 18.20 m

Project cost 69 500 UAH

Build a house from 134 880 USD

TMV 23G

288.32 m²

House dimensions 16.53 x 14.26 m

Project cost 69 500 UAH

Build a house from 138 394 USD

TMV 23K

256.40 m²

House dimensions 12.79 x 18.51 m

Project cost 69 500 UAH

Build a house from 123 072 USD

The composition of a standard project:

Project documentation for standard projects is issued in two identical copies, in printed form or PDF format. The average size of one project copy ranges from 50 to 70 pages, in A4-A3 format.

Architectural Section:

General project statements
Master plan diagram
Floor plans
Roof Plan
Building Facades (4 projections)
Building sections
Specification of windows and doorways
Floor explication
Ventilation risers
Project visualization

Constructive section:

General project statements
Layout for the foot of the foundation
Layout of foundation walls
Foundation Sections
Layout of floor jumpers
Monolithic Column Schemes
Floor plan
Overlap Sections
Staircase diagram
Embedded parts
Truss System Plan
Truss System Sections
Specifications (concrete, reinforcement, wood, lintels)

Engineering Section:

Heating system (plans, diagram, specification of equipment and materials)
Water supply and sewerage system (plan, diagram, specification of equipment and materials)
Power electrical networks:
- electric lighting networks
- wiring diagrams for switches and lamps
- diagram of the grounding and equipotential bonding system
Detailed description and characteristics of all elements of engineering systems.

What you need to know about our projects:

The price of completed projects on the website is indicated for the Architectural and Structural sections.

The Engineering section of the projects is available for an additional fee.

All projects are developed according to Ukrainian building regulations and use materials available in the market.

House projects can be ordered in the original version or as a mirror image.

Changes to the standard project are possible based on individual preferences (additional fees apply).

The project preparation time ranges from 10 to 30 working days, depending on the project's readiness and preferences.

All our house projects can be modified or adapted to specific construction conditions, taking into account the individual preferences of the Client.

The adaptation of the project may include:

Adjusting the house to the site's master plan.
Adapting the foundations to the geological conditions of the site (geology report is required).
Adapting the project to the climatic conditions of the specific region (possible changes to walls, foundations, roof slope).
Adapting the engineering section of the project to the site's conditions (sewerage, water supply, heating, electricity).

Possible changes to the project:

Allowed and most frequent changes:

Changing the construction materials and techniques (foundations, walls, floors, roof).
Adjusting the location of internal partitions, windows, and door openings.
Minor changes to the overall dimensions of the house.
Changing the roof slope.
Designing a basement.
Altering the finishing materials inside and outside the house.

When maintaining the style and concept of the project, it is allowed to:

Make changes to external windows and door openings.
Adjust the sizes of windows and doors.
Design an additional entrance to the house or garage.
Modify the number and size of attic windows.
Make changes to external elements of the house, such as a garage, balcony, terrace, bay window, conservatory, veranda.
